Recommended for Large internal threads in:
Oil & Gas production & pipelines
Mining Industry
Large Truck & heavy soil moving equipment
Large production machinery
M82 – M95 3 1⁄4“- 3 3⁄4”
- Specially reinforce design to repair large threads in the given diameter range
- No prior thread measurements is needed
- Quickly adjust to any thread diameter & Pitch
- Applicable standards – Inch, Metric, LH, RH, Coarse & Fine
- A Major advantage over taps – can enter below damaged groves
- Automatically chases good thread sections to repair the damaged parts
- The cutting Blade made of HSS (62RC) – Guided by the undamaged thread to re grove the damaged section
- Removes rust and burrs
- cat # 07281
Specification
Blades
More Info
Specification
| NES 28 | ØD Range | Pipes | L | B | H | ROD | Ør | ØR | Package Size | Weight | |||
| L | W | H | lb | gm | |||||||||
| inch | 31⁄4– 33⁄4 | 23⁄4– 31⁄4 | 67⁄16 | 115⁄16 | 45⁄8 | 79⁄16 | 21⁄8 | 31⁄4 | 105⁄8 | 10 | 27⁄8 | 3.2 | 1460 |
| mm | 82-95 | 163 | 50 | 118 | 192 | 54 | 82 | 270 | 255 | 73 | |||
Blades
Product | Cat. no# | part name | Part no# | Description |
NES 28 | 07281 | RK 26 60°C | 07266 |
|
|
| RK 26 60°F | 07268 | For threads finer than 14 TPI or 1.75mm |
|
| RK 26 55°C | 07265 | Comply to british standard threads |
|
| RK 26 55°F | 07262 | For threads finer than 14 TPI or 1.75mm |
More Info

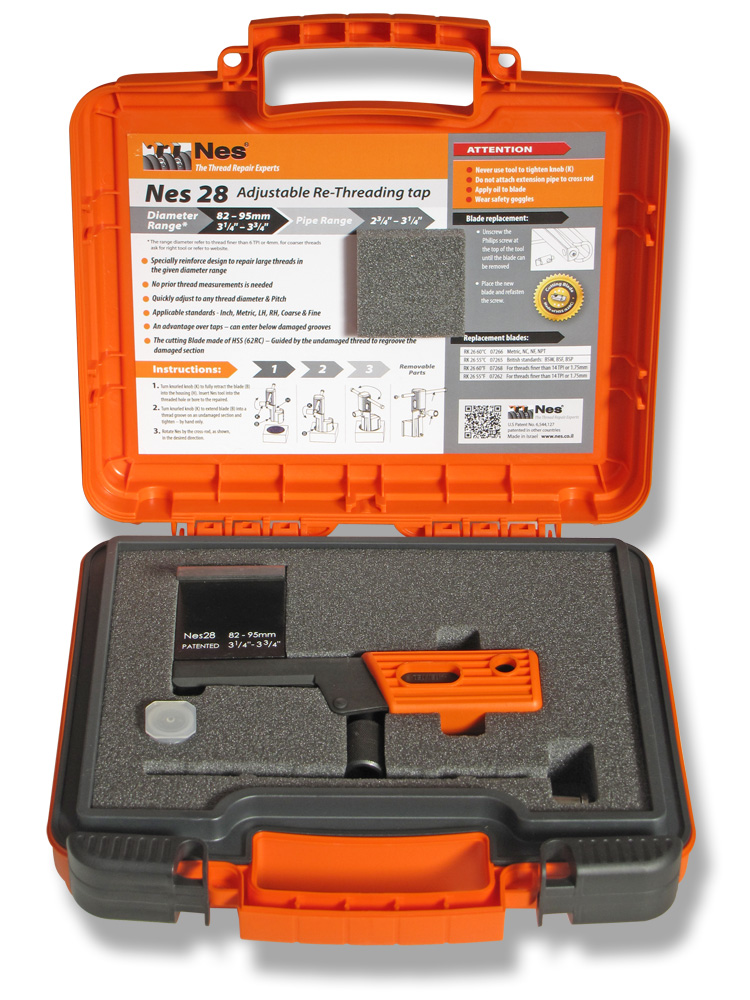

- Available in Sets: Nes 28
- U.S. Pat. # 6,544,127
- Patented in other countries
