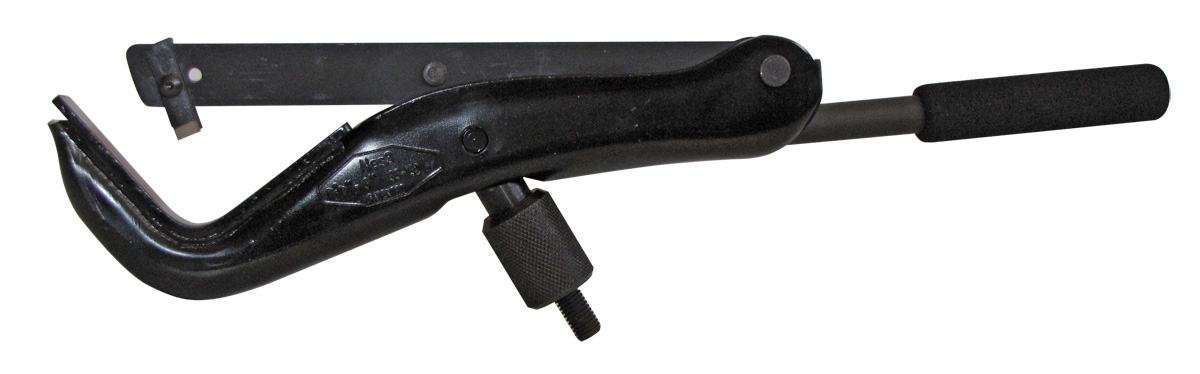

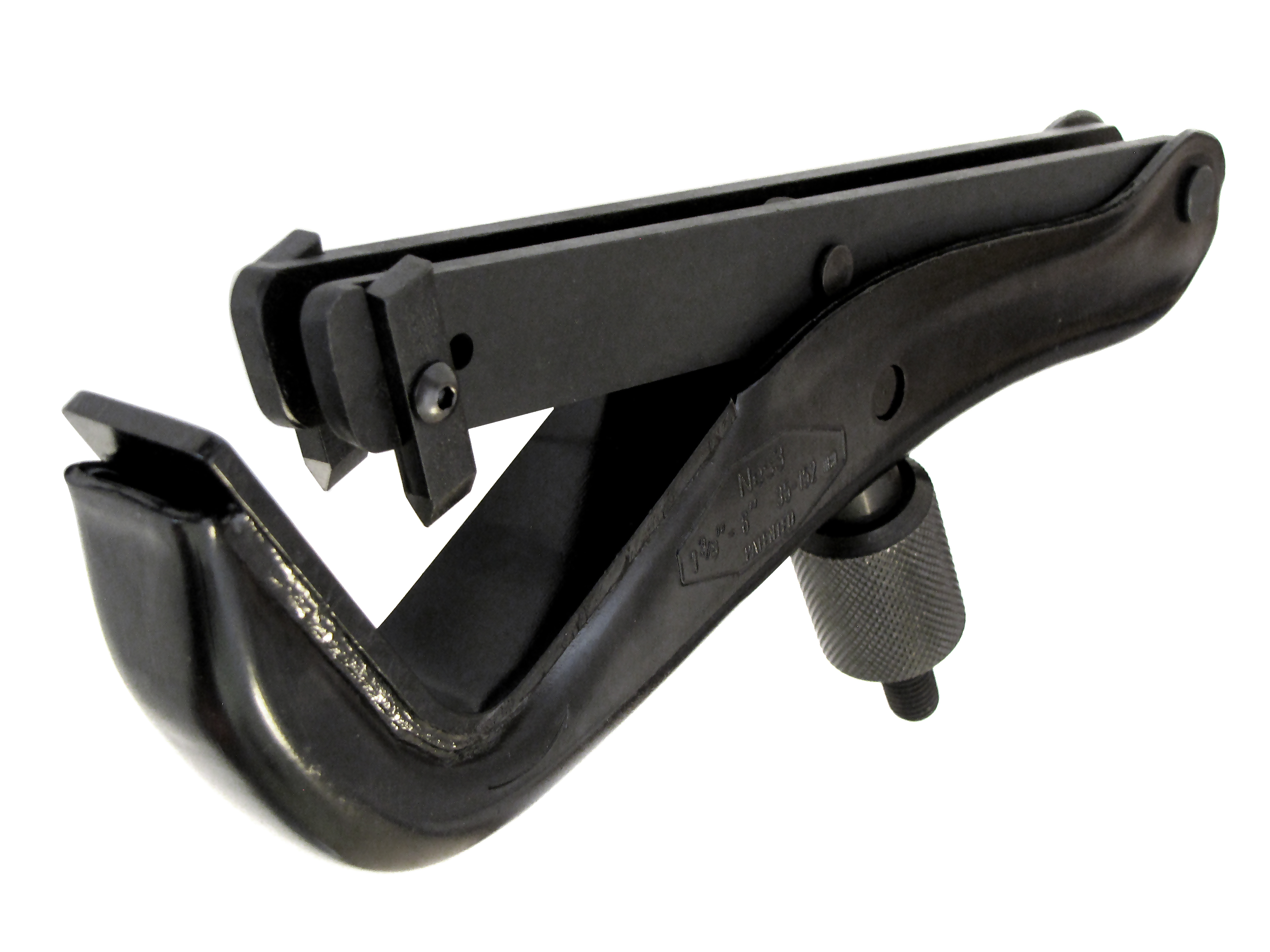

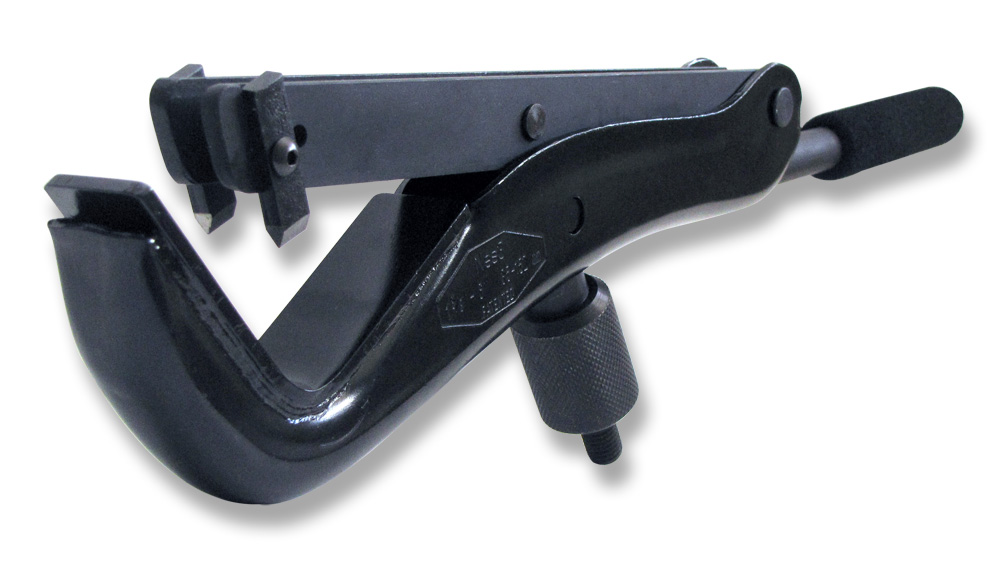

M35- M152 13⁄8“-6”
- The tool V-shaped thread seat is narrower – to reduce the gap between the blades to the tool sides.
- In cases of stepped shaft where the thread diameter is smaller then the shaft, Nes3 can fix up-to the last 3mm from thread end.
- The tool is smaller in width (35mm) and weight (1.80 kg).
- Nes3 Maximum diameter is larger than before, up-to 152mm (6″)
- Nes3 new multi-teeth cutting blades are treating the thread to its best performance
- The combination of multi-teeth cutting blade with Keyway Skip Accessory makes your repairing outcome easy and perfect even on threads with keyway.
Specification
Blades
More Info
KEYWAY SKIP ACCESSORY
Specification
NES 3 | ØD Range | Pipes | L | W | H | R | Package Size | Weight | |||
L | W | H | lb | gm | |||||||
inch | 13⁄8– 6 | 1- 51⁄2 | 12 | 13⁄4 | 51⁄8 | 10 | 123⁄8 | 2 | 51⁄2 | 4.0 | 1800 |
mm | 35-152 | 305 | 32 | 130 | 254 | 315 | 51 | 140 |

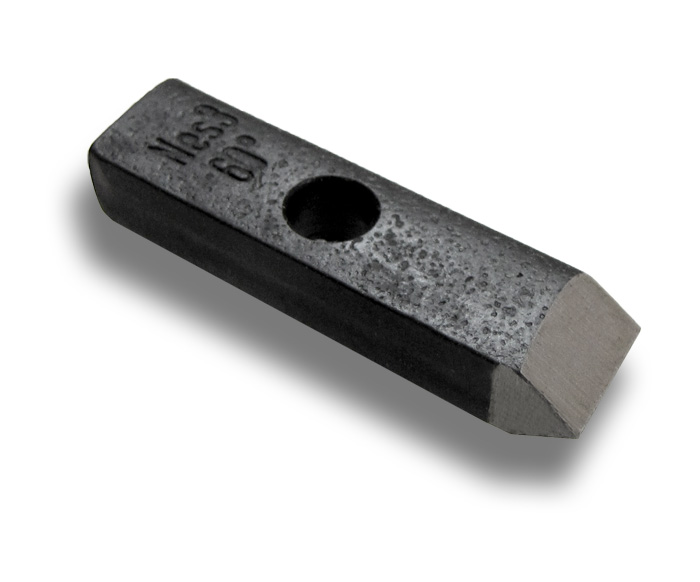

Blades
Product | Cat. no# | part name | Part no# | Description |
NES 3 | 03000 | RK 3 60° | 03010 | Fitted as standard |
|
| RK 3 60° | 03011C | For threads Coarser than 7 TPI or 3.5mm |
|
| RK 3 60° | 03012F | For threads finer than 14 TPI or 1.75mm |
|
| RK 3 55° | 03020 | Comply to British standard threads |
|
| RK 3 55° | 03021C | For threads Coarser than 7 TPI or 3.5mm |
|
| RK 3 55° | 03022F | For threads finer than 14 TPI or 1.75mm |
More Info

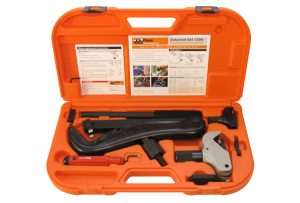

- Available in Sets: Nes 1300
U.S. Pat. # 6,544,127
Patented in other countries

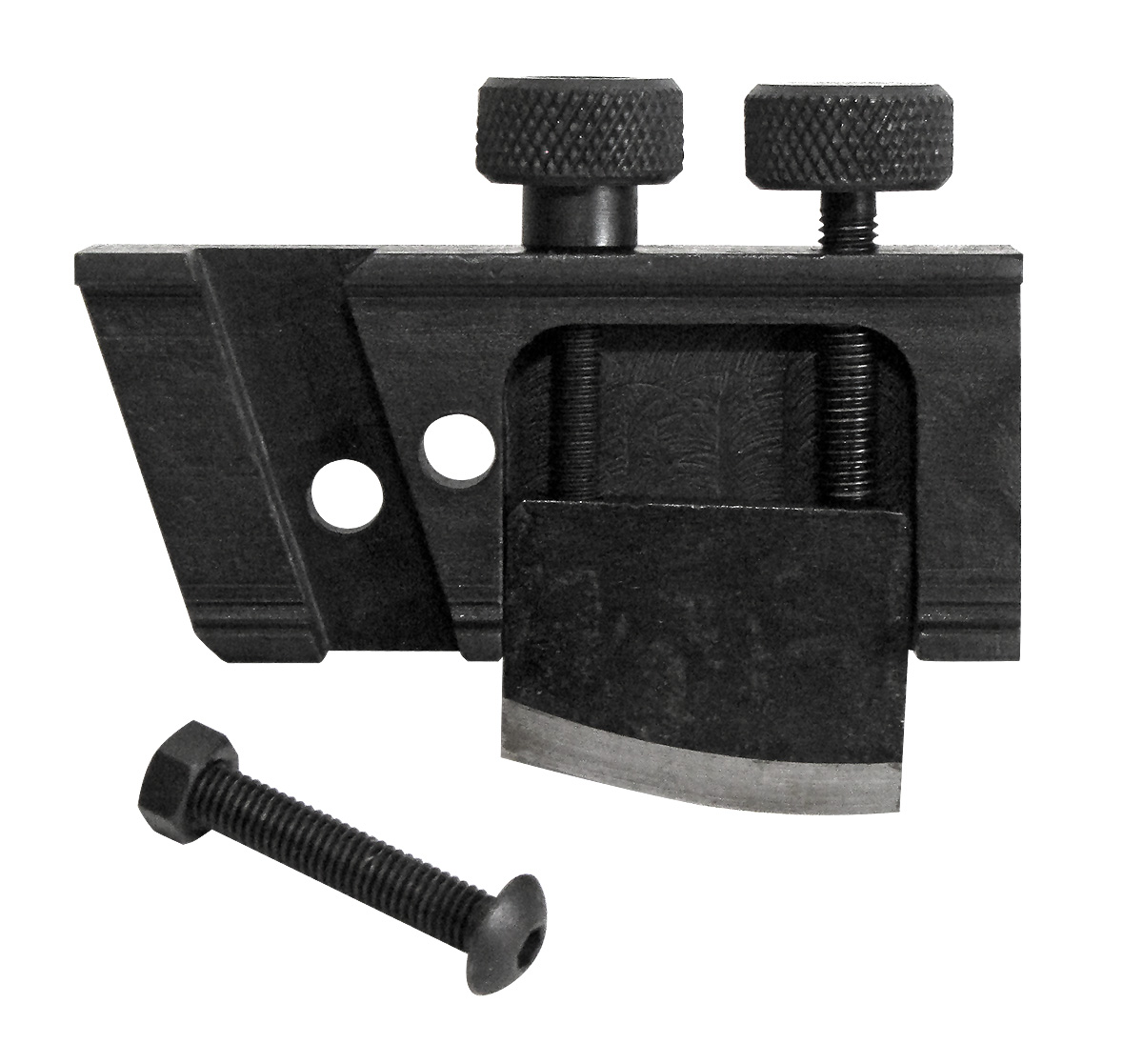

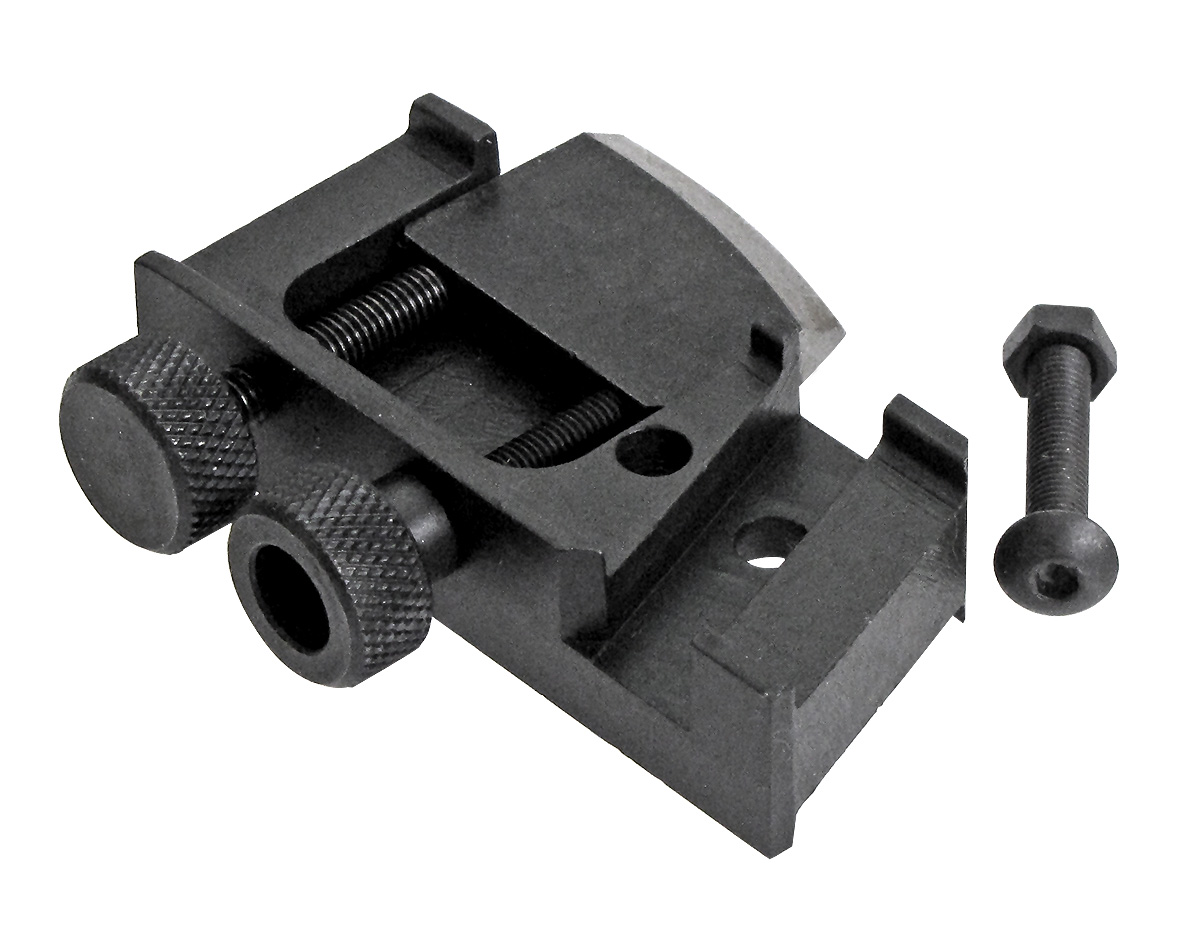

KEYWAY SKIP ACCESSORY
Providing a new dimension to Nes 3, This accessory enables the versatile re-threader to glide over Keyway, Slots, Grooves or channels. For repairing damage threaded shafts with slots for key or tab washer, choose the appropriate addition cutter for best results.
Keyway Skip accessory for fine threads (Finer than 2.5mm or 10 TPI) Cat # 03101
Keyway Skip accessory for coarse threads (Coarser than 2.5mm or 10 TPI) Cat # 03104
Product | Part no# | Description |
multi-teeth cutting blade | 03032 | Pitch 1.0mm |
03033 | pitch 1.25mm | |
03034 | pitch 1.5mm | |
03035 | pitch 1.75mm | |
03124 | pitch 24 TPI | |
03120 | pitch 20 TPI | |
03118 | pitch 18 TPI | |
03116 | pitch 16 TPI | |
03114 | pitch 14 TPI |
